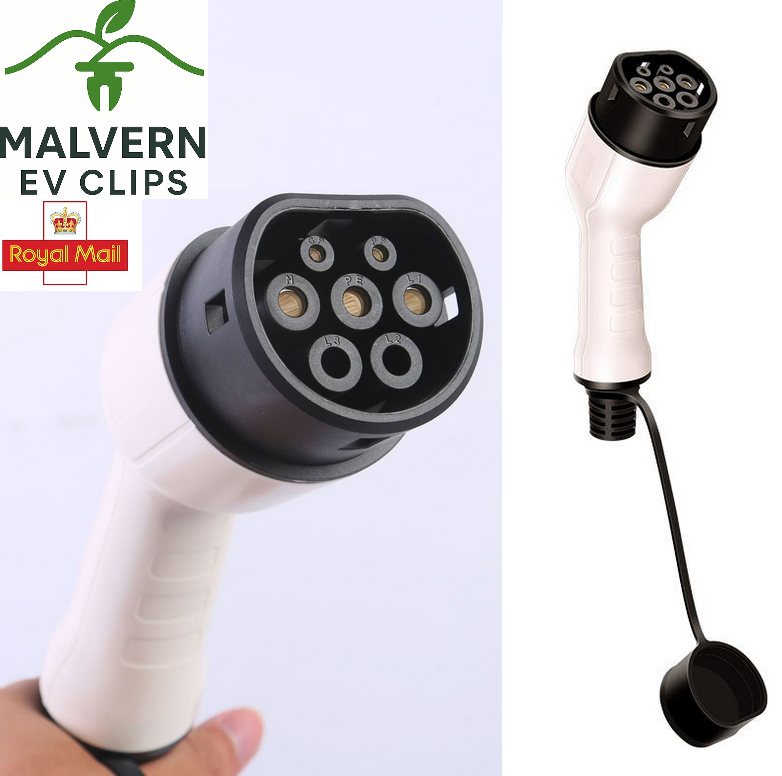

EV Cable Charger Replacement Part Type 2 Female Plug Handle 480V 32A 3P EU UK

Type: Type 2 (IEC 62196-2) EV charging connector / charging gun
Current Rating: 32A
Phase: 3-Phase
Max Power: Up to 22kW (11kW / 7kW compatible depending on setup)
Compatibility: Type 2 electric vehicles and charging systems
Material: High-strength, heat-resistant housing with secure grip design
Condition: Brand new
Included: 1 × Type 2 EV charging connector

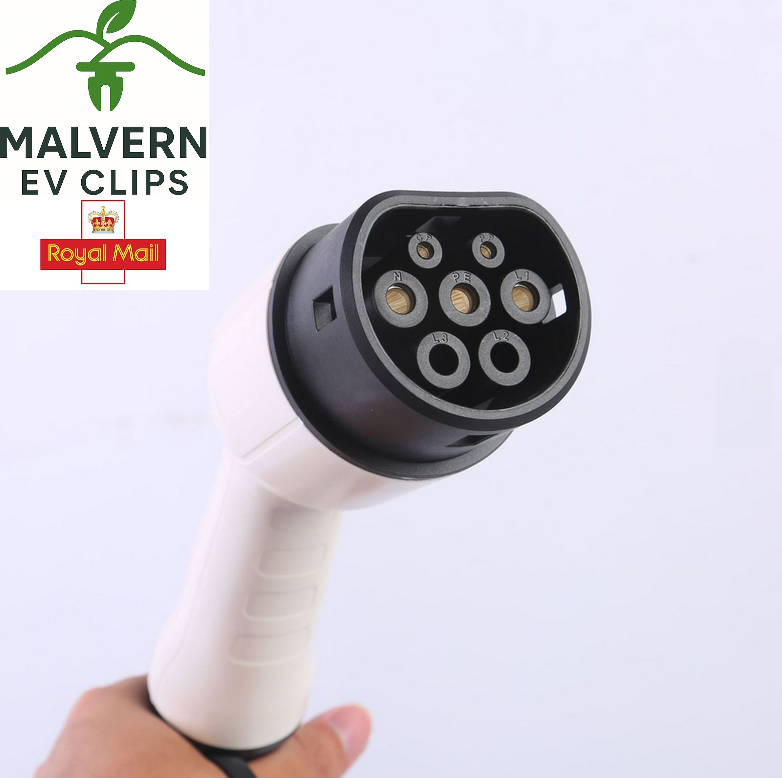

Designed for high-power AC charging applications, this 32A 3-phase Type 2 connector is suitable for EV cable builds, repairs, or custom installations. Rated up to 22kW, it supports 7kW and 11kW systems depending on configuration. Ergonomic grip, durable construction, and reliable pin alignment for consistent connections. Supplied in white only as shown. Professional-grade component for EV charging applications.

This is a standalone EV charging connector supplied without instructions. It is not a plug-and-play item. Professional installation is required. Buyers are responsible for ensuring suitability and safe installation. Returns due to incorrect fitment or installation error are not covered.

32A Configuration – Control Pilot / Proximity Wiring:
A 220 Ω resistor (included) is wired between the PP (Proximity Pilot) pin and the PE (Earth) pin inside each connector. This resistor signals to both the vehicle and the charging equipment that the plug is correctly inserted and that the cable is rated for 32A operation.

When tested with a multimeter:

• PP to PE at each connector: approximately 220 Ω

• PP to PP from one end of the cable to the other: approximately 440 Ω

• All remaining conductors: should read 0 Ω (continuity) end-to-end

This wiring arrangement is standard for 32A Type 2 charging cables and enables correct current recognition by the charger.

UK stock – fast dispatch from Malvern Hills. Quality clips from Malvern EV Clips.
