Choosing the Right Cable Protector Ramp for Your EV

Running an EV charging cable across a driveway, path, or garage floor is a trip hazard — and a potential source of cable damage if it gets driven over repeatedly. A cable protector ramp solves both problems, but with several sizes and styles available, it's worth knowing what to look for before you buy.

Why you need a cable protector ramp

EV charging cables are thick, heavy, and expensive to replace. Leaving one loose across a driveway exposes it to foot traffic, vehicle tyres, and weather — all of which can damage the insulation over time. A cable ramp keeps the cable in a protected channel, flat to the ground, so people and vehicles can pass over it safely.

They're also a legal consideration: if someone trips over a cable on your property, a ramp demonstrates you've taken reasonable steps to manage the hazard.

Key things to check before buying

1. Cable diameter

This is the most important measurement. EV charging cables typically range from 10mm to 19mm in diameter depending on the cable type and rating. Check your cable's diameter before ordering — most ramps specify a maximum cable diameter in the product listing.

• Standard home charging cables (3-7kW): usually 10–13mm
• Heavier duty or 3-phase cables: up to 19mm

2. Ramp length

Measure the distance the cable needs to cross. Our ramps are available in 1m and 2m lengths, and our aluminium cable channels come in 3m lengths and can be cut to size. For longer runs, multiple sections can be joined end to end.

• 1m ramp: suits a single path crossing or short driveway edge
• 2m ramp: better for wider driveways or paths
• 3m aluminium channel: ideal for permanent installations — can be cut to exact length and fixed into the surface

3. Indoor vs outdoor use

Most rubber ramps are suitable for both indoor and outdoor use, but if the cable will be exposed to rain, consider pairing the ramp with a waterproof plug box to protect the connection point at each end. Our kits include both a ramp and a weatherproof ABS box rated to IP54.

4. Vehicle load rating

If cars will be driving over the ramp, check it's rated for vehicle use. Our rubber ramps are heavy-duty and designed for driveway use. The aluminium channel is better suited to pedestrian areas or fixed installations where vehicles won't cross directly.

5. Visibility

High-visibility yellow markings help people see the ramp and avoid trips. Our rubber ramps feature a yellow centre stripe, and we also stock reflective yellow/black safety tape for marking the edges of charging bays or cable runs.

Our cable protection range

Here's a quick overview of what we stock:

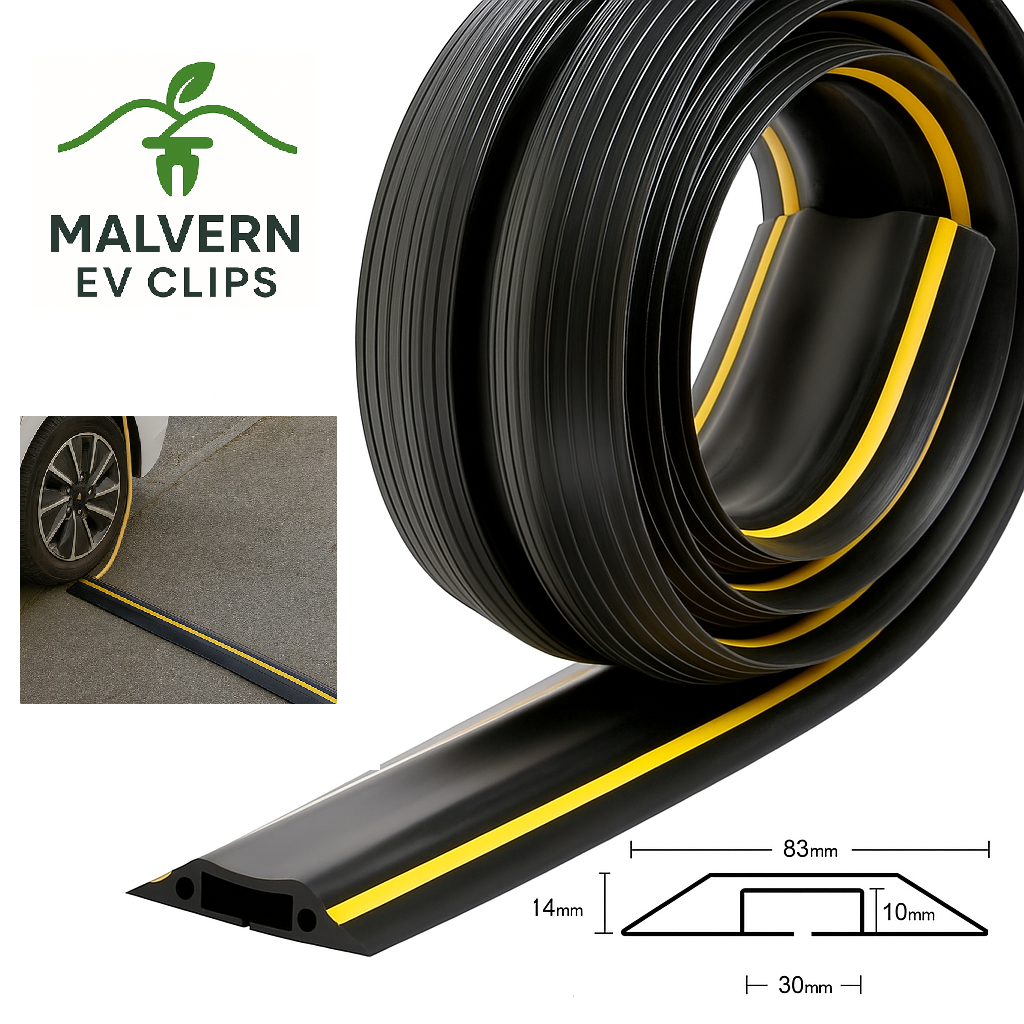

• 83mm rubber cable ramp (1m) — Channel width 30mm, fits cables up to 10mm. Black with yellow stripe. Flexible PVC, trims to size. Ideal for home driveways.
• Rubber cable ramp + waterproof plug box kit (1m or 2m) — Combines a rubber ramp with an IP54-rated weatherproof ABS box to protect the plug connection. The 2m kit suits wider crossings and fits cables up to 10mm.
• Aluminium cable channel (3m) — Heavy-duty, cut-to-size channel with flexible bristles to hold the cable in place. Ribbed edges for secure fixing into most surfaces. Max cable diameter 19mm. Best for permanent installations.
• Spiral cable sleeve (1m) — Flexible polyethylene wrap for protecting cables from pet bites, weather wear, and tangling. High-visibility green. Fits 10mm cables.

Browse the full cable protection range →

Which should I choose?

• Occasional use / renting: rubber ramp, no fixings needed, easy to move
• Permanent home install: aluminium channel, fixed into the surface, cleaner finish
• Exposed outdoor connection: add a waterproof plug box to any ramp setup
• Cable storage between charges: pair with a storage bag or wall hook to keep things tidy

Still not sure?

If you're unsure which ramp suits your setup, get in touch — just let us know your cable diameter and the distance you need to cover and we'll point you in the right direction.
